sharing connection with a speedy modem articonet


yesterday there was a way to ask about sharing speedy connection, but I still have not had time to write the article because a lot of racket. Mumpung now have the time, I made it.

Before discussing the speedy sharing, we should first have to know that speedy package we use is usually divided into packages timebased and volumebased.
There is also the unlimited package. In the package there timebased package 15 hours a day and there are also packages 50 hours. If the excess of the package, then overquota said. If you want speedy connection sharing, you should use the unlimited package for the speedy overquota in monthly usage.
But if you still want to use the package timebased for disharing, then you should frequently undertake billing and mengoffkan modem internet connection when finished.
If you usually use the system dial when speedy access, then the following article is a way to make a speedy sharing with you for access. Make sure you have a hub, ethernet cable that has been in Crimping RJ-45, and 2 pcs to test PC.

The process of setting that we will do is change the modem's settingan Bridged Mode Mode into PPOe

1. Setting your PC's IP address with the IP Address that matches the class Articonet IP, the default

Articonet IP: 192.168.1.1

PC IP Address: 192.168.1.2

Subnet: 255.255.255.0

Gateway: 192.168.1.1

DNS: 202.134.1.10

Connect the cable from the PC to the LAN Modem Articonet

2. Modem access articonet with our favorite browser, for example: firefox with the address: 192.168.1.1

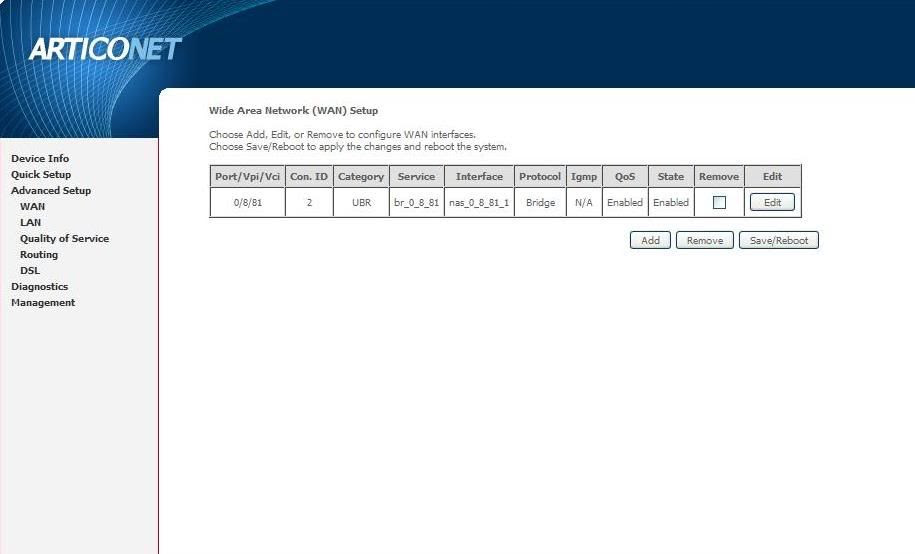

Select Advanced Setup, click WAN. If you use ordinary dial for access to speedy, so it looks like:

articonet speedy

3. Can be seen that the use Bridged connection mode, provide a check remove and click remove, the result looks like the picture below:

articonet speedy

4. Then select add, and the display will appear like the picture below, enter the vpi and vci accordance with your location, provide a check on the Enable Qos

articonet speedy

5. In the following, select the PPP Over Ethernet, and Next

articonet speedy

6. Enter the PPP username and password provided by telkom, then Click Next

articonet speedy

7. Click Next ago settingan save you

articonet speedy

8. Settingan Once completed, the display will appear as below and select Save / reboot.

articonet speedy

9. Wait about 2 minutes, and get back to 192.168.1.1. If the status is as under, and has obtained DNS, Default Gateway, etc., then this means your connection was successful. If you want to play with your friend the internet, connect modem, your PC and your friend via the PC Hub

articonet speedy

Do not forget to frequently undertake speedy charge you. Do not to overload. If you are finished using the Internet access, do not forget to turn off the modem as if you are still on and connected to your pc, the internet connection will continue to exist and you will reduce the quota. Use alerts speedy as you tool monitoring
